Eizo RadiForce RX360 22.00 Inches 60 Hz IPS LCD [Monitor]

Eizo RadiForce RX360 22.00 Inches 60 Hz IPS LCD

The EIZO RadiForce RX360 is a high-precision 3-megapixel medical-grade monitor designed for radiology, diagnostic imaging, and healthcare professionals. Built for accurate medical image interpretation, it features advanced technologies like Hybrid Gamma PXL, Digital Uniformity Equalizer (DUE), automatic brightness stabilization, and DICOM Part 14 calibration support for reliable diagnostic performance.

• DESIGN & BUILD

Brand: EIZO

Model: RadiForce RX360

Type: Professional Medical Diagnostic Monitor

Display Size: 22-Inch

Aspect Ratio: 3:4 Portrait Display

Color: Black

Compact Medical-Grade Design

Anti-Glare Screen Coating

Professional Ergonomic Stand

• DISPLAY

21.3" IPS LCD Panel

3MP Resolution (1536 × 2048)

3:4 Aspect Ratio

178° Horizontal / 178° Vertical Viewing Angles

Pixel Pitch: 0.2115 × 0.2115 mm

Brightness: 1100 cd/m² (Typical)

Static Contrast Ratio: 1500:1

Response Time: 12ms (Typical)

• COLOR & IMAGE ACCURACY

Up to 10-Bit Color Depth

1.07 Billion Colors via DisplayPort

High-Precision Grayscale Reproduction

DICOM Part 14 Compliance Support

Accurate Medical Image Rendering

• MEDICAL IMAGE TECHNOLOGY

Hybrid Gamma PXL Technology

Automatically optimizes grayscale and color images pixel-by-pixel for accurate visualization.

Digital Uniformity Equalizer (DUE)

Maintains consistent brightness and image uniformity across the entire display.

Auto Brightness Stabilization

Ensures stable brightness performance over long-term usage.

Integrated Front Sensor & Calibration Tools

Supports easy calibration and maintains diagnostic accuracy.

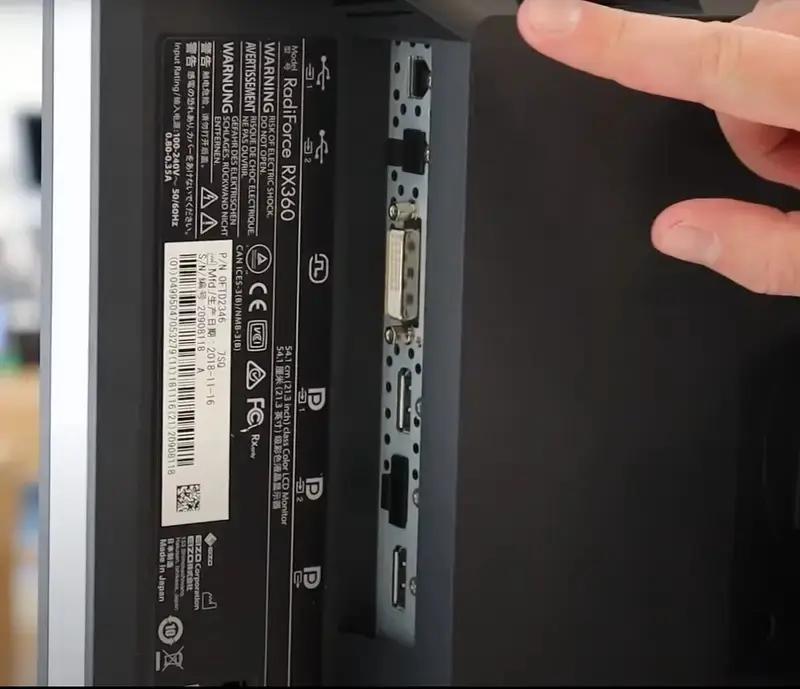

• CONNECTIVITY

2 × DisplayPort Inputs

1 × DisplayPort Output (Daisy Chain Support)

1 × Dual-Link DVI-D

2 × USB 2.0 Upstream Ports

2 × USB 2.0 Downstream Ports

• FEATURES

DICOM Part 14 Calibration Support

Diagnostic Image Optimization

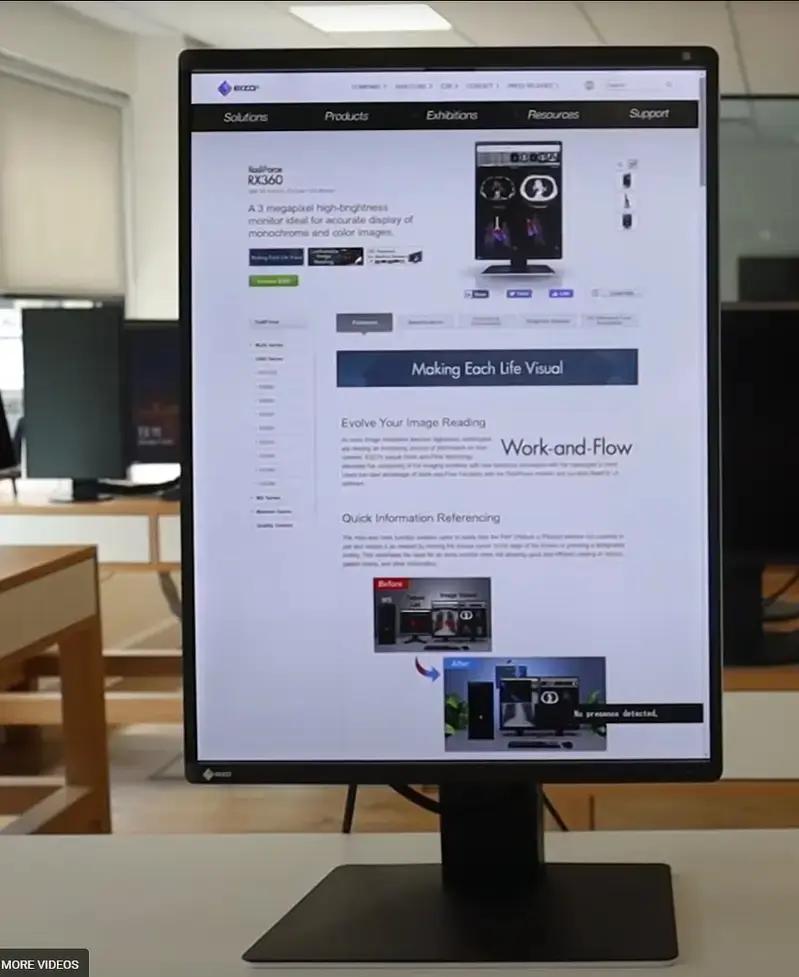

Portrait Orientation Support

Multi-Monitor Daisy Chain Capability

Anti-Glare Surface

Energy Efficient Operation

Professional Medical Workflow Support

• ERGONOMICS

Height Adjustment

Tilt Adjustment

Swivel Adjustment

Pivot Rotation

VESA Mount Compatible

Space-Saving Compact Design

• APPLICATIONS

Radiology Imaging

PACS (Picture Archiving and Communication System)

CR/DR Medical Scans

CT & MRI Image Review

3D Medical Rendering

Clinical Diagnostics

Healthcare Workstations

• POWER

Input Voltage: AC 100–240V

Universal Power Compatibility
